MEMS Oscillator SMD 2.5x2mm HCMOS 3-110MHz 20PF 20ppm 1.6-3.3V -SJK- Dimension 5x3.2mm

Ask Lasest Price
Brand Name :	SJK
Model Number :	SJK S20
Price :	$0.55/pieces 100-999 pieces

Add to Cart

Product Details
Company Profile

MEMS Oscillator SMD 2.5x2mm HCMOS 3-110MHz 20PF 20ppm 1.6-3.3V -SJK- Dimension 5x3.2mm

Product Description

APPLICATIONS

Due to the shortage of traditional oscillators, programmable MEMS oscillators are a perfect drop-in replacement. Provides higer stablity, lower current consumption and lead times as short as 1 week.

Programmable MEMES OSC are available in all personalized frequencies, different standard packages and voltages.

Frequency range from 1MHz to 110MHz
Excellent frequency stability as low as ±20ppm
Low power consumption of 3.5mA at 1.8V
Standby mode for longer battery life
Fast startup time of 5ms
LVCMOS/HCMOS output type
Size with 2.0×1.6, 2.5×2.0, 3.2×2.5, 5.0×3.2, 7.0×5.0 mm×mm
Automatic mounting and reflow soldering
Applications: DSC, Ethernet, USB, SATA, IP Cam, Tablets, E-books, etc
RoHS Compliant /Pb Free

CHARACTERISTICS

Item/Type	SJK8008
Output Type	LVCMOS/HCMOS
Frequency Range	1~110MHz
Supply Voltage	1.8V~3.3V
Frequency Stability	±20ppm~±50ppm, or specify
Current Consumption	4.5mA Max.
Standby Current	4.3mA Max.
OE Disable Current	4.2mA Max.
Operating Temperature	-40~+85℃
Duty Cycle	45~55%
Rise/Fall Time	2.5ns Max.
Voltage Vol (Max.)/Voh (Min.)	10%Vcc /90%Vcc
Voltage Vil (Max.)/Vih (Min.)	30%Vcc /70%Vcc
Input Pull-up Impedance	150KΩ Max. (Pin1 Logic High)
Input Pull-up Impedance	2MΩ Min. (Pin1 Logic Low)
Start-up Time	5ms Max.
Enable/Disable Time	130ns Max.
Resume Time	5ms Max.
RMS Period Jitter	3pS Max.
Peak to Peak Period Jitter	30pS Max.
RMS Phase Jitter (12KHz~20MHz)	2pS Max.
Storage Temperature	-60~+150℃
Packing Unit	2016 /2520 /3225: 3000pcs./reel 5032 /7050: 1000pcs./reel

*Contact Victor below if you require other specifications or components not listed on Alibaba.

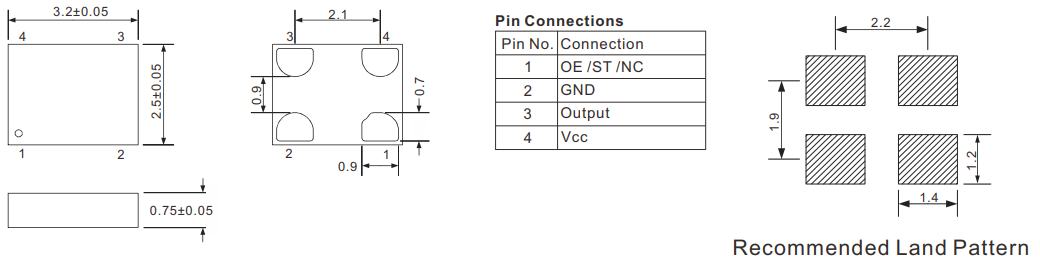

DIMENSIONS

Units: mm

MEMS Oscillator SMD 2.5x2mm HCMOS 3-110MHz 20PF 20ppm 1.6-3.3V -SJK- Dimension 5x3.2mm

SMD Type

SJK Series

Cross Reference

Size (L×W×H) mm

Frequency Range

Frequency Stability

Output Type

Supply Voltage

MEMS Oscillator SMD 2.5x2mm HCMOS 3-110MHz 20PF 20ppm 1.6-3.3V -SJK- Dimension 5x3.2mm

1N-2016

EPSON

ABRACON

SG2016

ASA

2.0×1.6×0.75

0.25MHz

180MHz

±15ppm

±20ppm

±25ppm

CMOS

1.8V

2.5V

3.3V

MEMS Oscillator SMD 2.5x2mm HCMOS 3-110MHz 20PF 20ppm 1.6-3.3V -SJK- Dimension 5x3.2mm

2N-2520

EPSON

ABRACON

SG-210STF

ASD

2.5×2.0×0.8

MEMS Oscillator SMD 2.5x2mm HCMOS 3-110MHz 20PF 20ppm 1.6-3.3V -SJK- Dimension 5x3.2mm

3N-3225

EPSON

ABRACON

SG3225

ASE

3.2×2.5×1.0

MEMS Oscillator SMD 2.5x2mm HCMOS 3-110MHz 20PF 20ppm 1.6-3.3V -SJK- Dimension 5x3.2mm 7N-5032

EPSON

ABRACON

SG5032

ASF

5.0×3.2×1.2

MEMS Oscillator SMD 2.5x2mm HCMOS 3-110MHz 20PF 20ppm 1.6-3.3V -SJK- Dimension 5x3.2mm 6N-7050

EPSON

ABRACON

SG7050

ASV

7.0×5.0×1.3

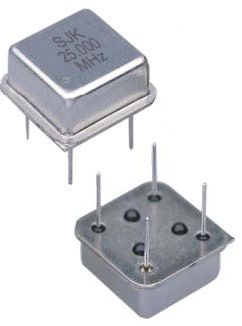

DIP and SMD Metal Case Type

SJK Series	Size (L×W×H) mm	Frequency Range	Frequency Stability	Output Type	Supply Voltage
9N-1490	14×9.6×5.4	0.25MHz to 180MHz	±15ppm	CMOS	3.3V 5V
6MF Full-Size	20×13×5.3
6MH Half-Size	13×13×5.3

About Us

COMPANY

Our company Shenzhen Crystal Technology Industrial Co., Ltd. began its journey in 1989 in the city of Shenzhen, manufacturing ceramic and quartz crystals. As of this year 2021, we have 2 factories and 3 offices manufacturing and providing several product lines: 32.768 kHz crystals, MHz crystals, Quartz filter, Quartz oscillator/ TCXO/ VCXO/ VC-TCXO/ OCXO, MEMS oscillator, Ceramic resonator/filter and SAW resonator/filter under our brand name SJK, positioning us as one of the leading manufacturers in the domestic market.

CERTIFICATES AND AWARDS

+ All our factories are certified with ISO9001 & ISO14001 quality standards. To renew in 2024.

+ Obtained the Shenzhen certification of High-Tech Enterprise. Year 2008.

+ Awarded Top 10 potential enterprise in China's Electronic Component Industry. Year 2010.

+ Awarded Pioneer Enterprise in China's Electronics Industry. Year 2015.

MEMS Oscillator SMD 2.5x2mm HCMOS 3-110MHz 20PF 20ppm 1.6-3.3V -SJK- Dimension 5x3.2mm

WHAT DO WE OFFER

+ One-stop supply for all your frequency control parts.

+ Dedicated FAE team offering PCB testing, load capacitance matching, and any aftersales technical support.

+ 180 warranty and return policy.

+ All our factories are ISO certified and our components comply with RoHS and REACH standards.

+ Impeccable customer service. We will reply to your inquiries within the same day! Contact Victor below for anything you want to ask. Or call (86)13122606630.

FAIRS AND EXPOS

SJK regularly participates in all national and international expos relevant to the electronics, automotive, telecom, robotics and many more industries.

MEMS Oscillator SMD 2.5x2mm HCMOS 3-110MHz 20PF 20ppm 1.6-3.3V -SJK- Dimension 5x3.2mm

PARTNERS

Below are some of our most renowned customers and partners worldwide.

MEMS Oscillator SMD 2.5x2mm HCMOS 3-110MHz 20PF 20ppm 1.6-3.3V -SJK- Dimension 5x3.2mm

FAQ

1. Are you a manufacturer?

We are a manufacturing company with over 30 years of experience in Crystals, Oscillators and Filters.

Our production capacity is 1M pieces/month for each crystal series.

2. How long is your delivery time?

Lead time varies for different component families. Our general lead times are as follows:

Crystals	2-4 weeks
Oscillators	4-6 weeks
MEMS Osc	1 week
TCXO VCXO VC-TCXO OCXO	4-10 weeks
In stock	Package prepared to ship within 24h. 3-5 working days of shipping time.

3. Do you provide samples?

We provide 10-20 free samples without any compromise. Contact Victor below and ask him what parts you need. Or call (86)13122606630.

4. Can you manufacture uncommon and personalized frequency parts?

Yes, we manufacture custom frequencies. Lead time will take 1-2 weeks longer.

5. What parameters do I have to provide for a detailed quotation?

The basic parameters we need to know are size, frequency, load capacitance, ppm and quantity. Supply voltage is also required for oscillators.

If necessary, we can advise on other parameters.

6. What does your brand namestand for?

Satisfaction quality

Just-in-time service

Key cost offering

We firmly believe in these principles when offering our products.

Product Tags:

2.5x2mm MEMS Oscillator

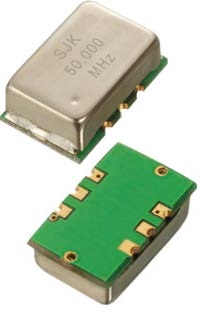

MEMS Oscillator SMD 2.5x2mm HCMOS 3-110MHz 20PF 20ppm 1.6-3.3V -SJK- Dimension 5x3.2mm

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Shenzhen Crystal Technology Industrial Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Explore more MEMS Oscillator-Low Power products from this supplier

Find Similar Products By Category:

Electronic Components & Supplies

Hot Searches:
