8009 Series 7x5mm 4-pin MEMS Oscillator SMD HCMOS 1-200MHz 20PF 20ppm 1.8-3.3V -SJK-

Ask Lasest Price
Brand Name :	SJK
Model Number :	SJK MEMS-8008
Price :	$0.55/pieces 100-999 pieces

Add to Cart

Product Details
Company Profile

8009 Series 7x5mm 4-pin MEMS Oscillator SMD HCMOS 1-200MHz 20PF 20ppm 1.8-3.3V -SJK-

Product Description

APPLICATIONS

Due to the shortage of traditional oscillators, programmable MEMS oscillators are a perfect drop-in replacement. Provides higer stablity, lower current consumption and lead times as short as 1 week.

Programmable MEMES OSC are available in all personalized frequencies, different standard packages and voltages.

Frequency range from 1MHz to 200MHz
Excellent frequency stability as low as ±20ppm
Low power consumption of 3.5mA at 1.8V
Standby mode for longer battery life
Fast startup time of 5ms
LVCMOS/HCMOS output type
Size with 2.0×1.6, 2.5×2.0, 3.2×2.5, 5.0×3.2, 7.0×5.0 mm×mm
Automatic mounting and reflow soldering
Applications: DSC, Ethernet, USB, SATA, IP Cam, Tablets, E-books, etc
RoHS Compliant /Pb Free

CHARACTERISTICS

Item/Type	SJK8008
Output Type	LVCMOS/HCMOS
Frequency Range	1~200MHz
Supply Voltage	1.8V~3.3V
Frequency Stability	±20ppm~±50ppm, or specify
Current Consumption	4.5mA Max.
Standby Current	4.3mA Max.
OE Disable Current	4.2mA Max.
Operating Temperature	-40~+85℃, -40~+125℃
Duty Cycle	45~55%
Rise/Fall Time	2.5ns Max.
Voltage Vol (Max.)/Voh (Min.)	10%Vcc /90%Vcc
Voltage Vil (Max.)/Vih (Min.)	30%Vcc /70%Vcc
Input Pull-up Impedance	150KΩ Max. (Pin1 Logic High)
Input Pull-up Impedance	2MΩ Min. (Pin1 Logic Low)
Start-up Time	5ms Max.
Enable/Disable Time	130ns Max.
Resume Time	5ms Max.
RMS Period Jitter	3pS Max.
Peak to Peak Period Jitter	30pS Max.
RMS Phase Jitter (12KHz~20MHz)	2pS Max.
Storage Temperature	-60~+150℃
Packing Unit	2016 /2520 /3225: 3000pcs./reel 5032 /7050: 1000pcs./reel

*Contact Victor below if you require other specifications or components not listed on Alibaba.

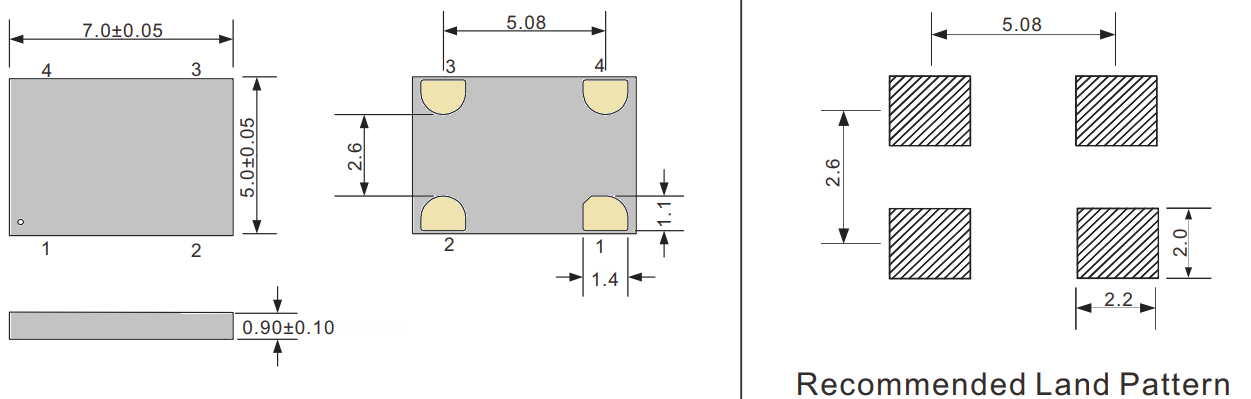

DIMENSIONS

Units: mm

8009 Series 7x5mm 4-pin MEMS Oscillator SMD HCMOS 1-200MHz 20PF 20ppm 1.8-3.3V -SJK-

MEMS OSCILLATOR SERIES

Click on the pictures for more details, available MEMS oscillators in all common sizes.

Contact Victor below for other sizes and specifications.
