433.92MHz One Port SAW Resonator SMD1814 Size High Stability for Remote Control Devices

Ask Lasest Price
Brand Name :	SJK
Model Number :	433.92MHz One-Port SAW Resonators
Certification :	SGS, RoHS, REACH
Price :	Negotiate
Payment Terms :	T/T
Supply Ability :	30K pcs per Month
Delivery Time :	2~4weeks

Add to Cart

Product Details
Company Profile

433.92MHz One Port SAW Resonator SMD1814 Size High Stability for Remote Control Devices

433.92MHz One Port SAW Resonator SMD1814 Size High Stability and Reliability Applicationfor Remote Control etc

Features:

One-port Resonator
CSP Package for Surface Mounted Technology (SMT)
RoHS compatible
Package size 1.80x1.40x0.90mm
Electrostatic Sensitive Device(ESD)

Specifications:

Item			Minimum	Typical	Maximum	Unit
Center Frequency	Absolute Frequency	fc	433.770	433.920	434.070	MHz
Center Frequency	Tolerance from 433.920MHz	△fc		±150		KHz
Insertion Loss(min)		IL		1.3	2.2	dB
Quality Factor	Unloaded Q	Q_U		12000
Quality Factor	50Ω Loaded Q	Q_L		1500
Temperature Stability	Turnover Temperature	T₀	10	25	40	℃
	Turnover Frequency	f₀		f_c
	Frequency Temperature Coefficient	FTC		0.032		ppm/℃
Frequency Aging	Absolute Value during the First Year	\|fA\|		≤10		ppm/yr
DC Insulation Resistance between Any Two Pins			1.0			MΩ
RF Equivalent RLC Model	Motional Resistance	R_M		12.196		Ω
	Motional Inductance	L_M		183.82		μH
	Motional Capacitance	C_M		0.733		fF
	Static Capacitance	C₀		2.23		pF

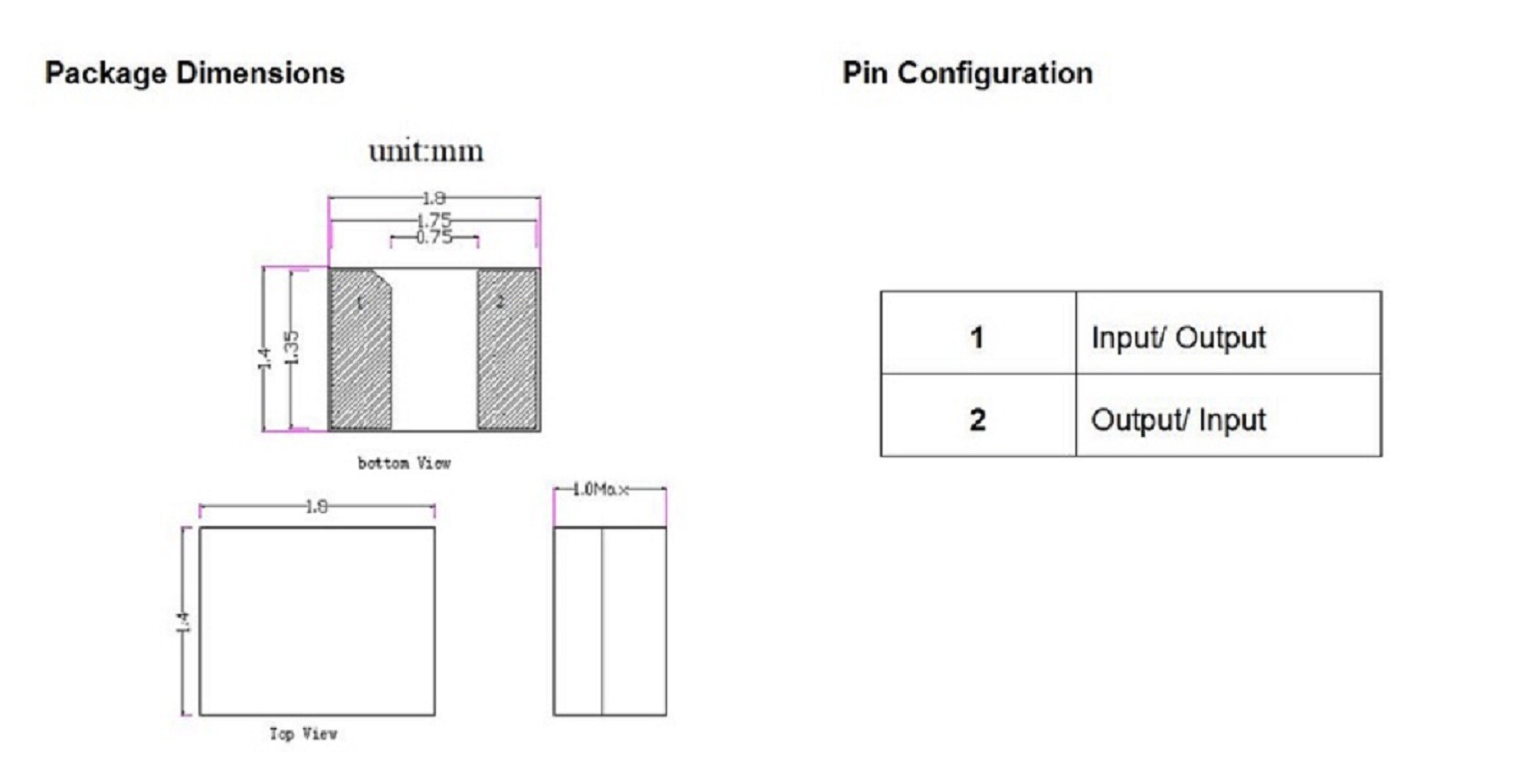

Dimensions And Soldering Plattern:

433.92MHz-One-Port-SAW-Resonator
