7Z Glass Crystal Quartz Crystal Resonator

Specifications and Dimensions

Features



2520 size miniature and lightweight SMD crystal resonator with a low profile of 0.75mm

Wide frequency range from 12MHz up to 64MHz

Excellent heat resistance.

High precision and high reliability

Automatic mounting and reflow soldering

Applications: Telecommunications, Consumer Device, DVC, PC, DSC, Automotive Applications, etc.

RoHS Compliant


Specifications



Type7Z Glass Sealed SMD Crystal
Frequency Range12~13MHz13~20MHz20~27MHz27~64MHz
Overtone OrderFundamental
Load Capacitance8pF, 10pF, 12pF, or specify
Drive Level1~50μW Max. (10μW Typ.)
Frequency Tolerance±10ppm, ±20ppm, or specify
Series Resistance200Ω Max.150Ω Max.80Ω Max.60Ω Max.
Shunt Capacitance5pF Max.
Operating Temperature-20~+70℃, -40~+85℃, or specify
Storage Temperature-55~+125
Aging (at 25℃)±3ppm /Year Max.
Packing Unit3000pcs./Reel

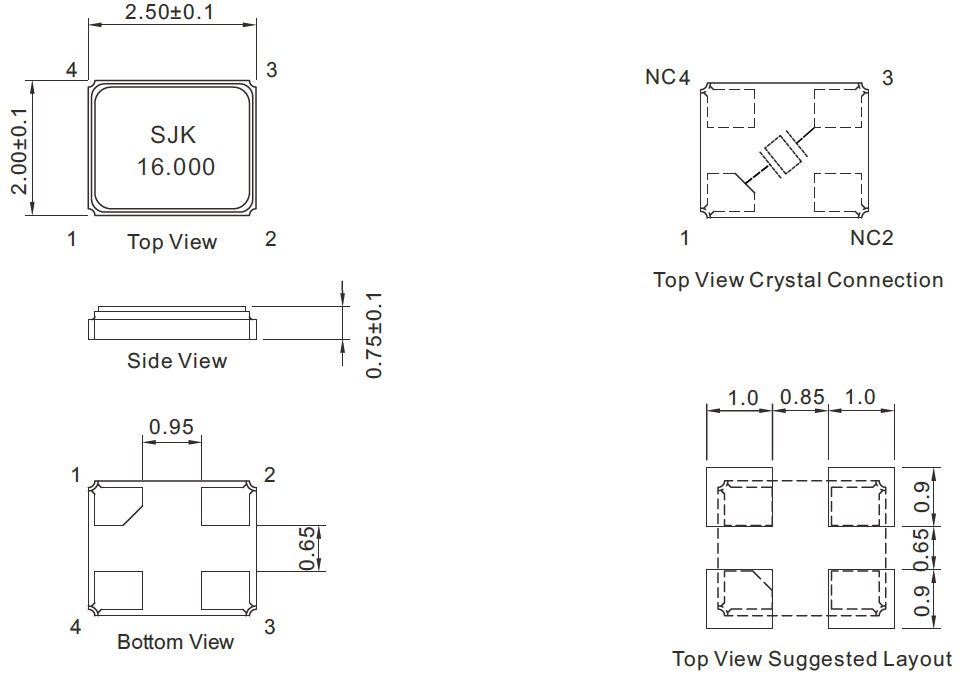

Dimensions [mm]



2520 glasscorrect.jpg
