7E Series SMD2520 Crystal Unit 12MHz To 96MHz High Precision For Wireless Communications

Ask Lasest Price
Brand Name :	SJK
Model Number :	SMD2520 Crystal Unit
Certification :	SGS, RoHS, REACH
Price :	Negotiate
Payment Terms :	T/T
Supply Ability :	30K pcs per Month
Delivery Time :	2~4weeks

Add to Cart

Product Details
Company Profile

7E Series SMD2520 Crystal Unit 12MHz To 96MHz High Precision For Wireless Communications

7E Series SMD2520 Crystal Unit 12MHz To 96MHz High Precision And High Reliability for Wireless Communications

Features:

High precision and high frequency stability
Industry Standard Package:2.5 x 2.0 x 0.55 mm
Frequency range from 12MHz To 96MHz
Extremely good for reducing EMI effect
Provide clean and stable reference clock to a wide variety of ICs
RoHS and REACH Compliant , Pb-free
Applications for Wireless Communication, CPE, Router, Ethernet Switch, Gateway, Set-Top Box, Notebook, Tablet, Server,Industry control, etc.

Electronic Specifications:

Item	7E Series SMD2520 Crystal Unit
Frequency Range	12MHz~16MHz	16MHz~20MHz	20MHz~30MHz	30MHz~60MHz	60MHz~96MHz
Overtone Order	Fundamental
Frequency Tolerance	±10ppm, ±20ppm, ±30ppm, or specify
Frequency Stability Over Temperature	±10ppm, ±20ppm, ±30ppm, or specify
Drive Level	100µW typ., 300µW max.
Load Capacitance	6~20pF, or specify
Series Resistance	180Ω max.	100Ω max.	80Ω max.	60Ω max.	50Ω max.
Operating Temperature	-20~+70°C, -40~+85°C, or specify
Storage Temperature	-55~+125°C
Aging	±3ppm/Year max.
Package Size	2.52.00.55mm
Packing Unit	3000pcs/Reel

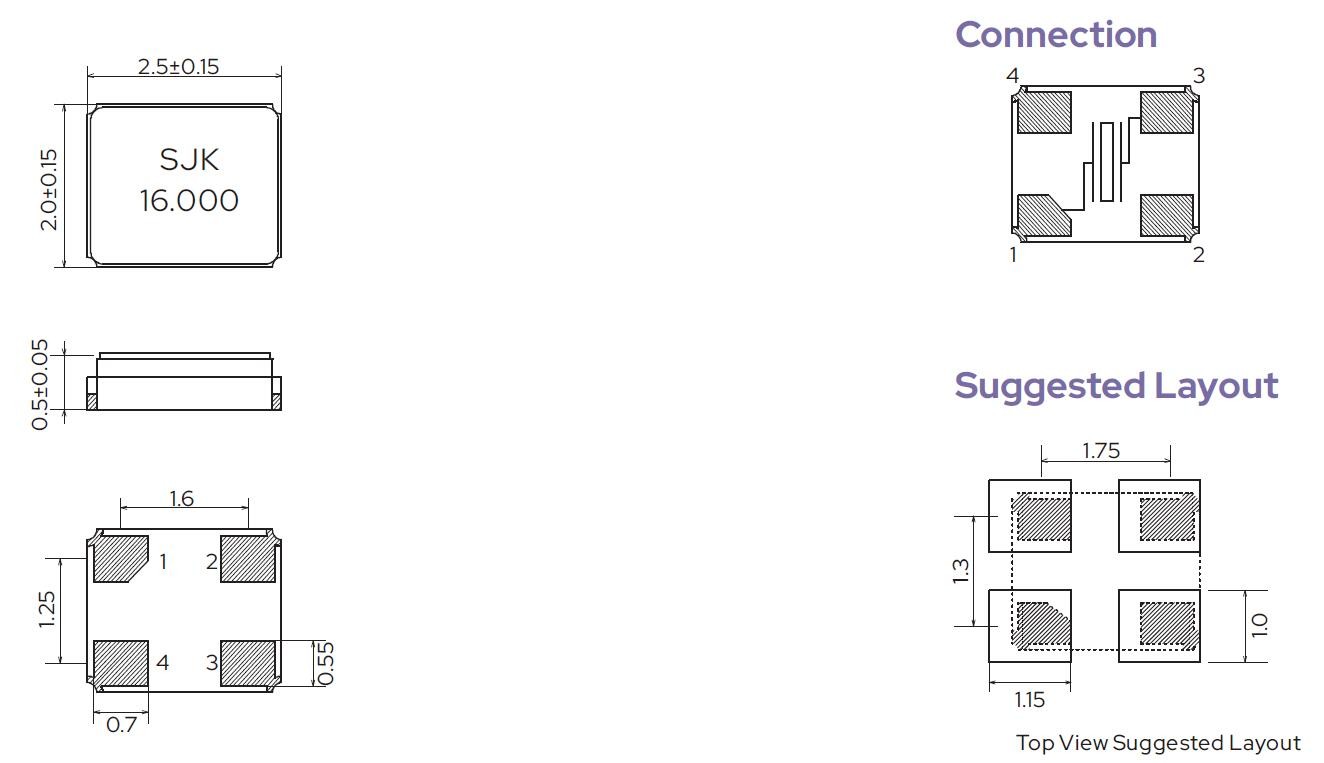

Dimensions:
