    SMD 14*9*5mm OCXO With 6 Pads 5~40MHz 3.3V Or 5V ±30ppb -40~+85 For Digital Switch


    SMD 14*9*5mm OCXO With 6 Pads 5~40MHz 3.3V Or 5V ±30ppb -40~+85 for Digital Switch


    Features


    OCXO (Oven Controlled Crystal Oscillator)

    Typical 14.3×9.3×6.5mm SMD OCXO

    Frequency range from 5MHz to 40MHz

    ±30ppb frequency stability over -40~+85℃

    Stratum 3 (Overall ±4.6ppm including 20 years aging)

    Automatic mounting and reflow soldering

    Very fast warm-up and accurate stability

    SC-Cut crystal unit

    Applications: Base Station, Digital Switch, Reference Timing Circuit, Measuring Equipment, Synthesizer, etc

    RoHS Compliant & Pb-Free


    Specifications




    Type9X Series SMD OCXO
    Output TypeHCMOS
    Output Load15pF, or specify
    Output Wave FormRectangular
    Supply Voltage3.3V / 5.0V
    Frequency Range5~40MHz
    Operating Temperature-40~+85℃, or spcify
    Frequency StabilityFrequency Tolerance±30ppb Max.
    vs. Operating Temperature±10ppb~±50ppb
    vs. Supply Voltage±5ppb Max. (±5 Change)
    vs. Load±10ppb Max. (±10 Change)
    vs Aging±2.0ppb /Daily, ±0.4ppm/Year, ±2.0ppm/10 years, Max.
    Voltage Vol (Max.) / Voh (Min.)0.1Vcc/0.9Vcc
    Duty Cycle45~55%
    Spurious-60dBc
    Warm-up±0.1ppm (In 5 minutes @+25, referenced to 1hour)
    Power Consumption (Steady state)0.6W Max.
    Frequency Adjustment Range±5ppm (+1.65V±1.65V/+2.5V±2.5V)
    Phase Noise @20MHz@10Hz-98dBc/Hz
    @100Hz-126dBc/Hz
    @1KHz-145dBc/Hz
    @10KHz-152dBc/Hz
    Packing Unit500pcs./Reel

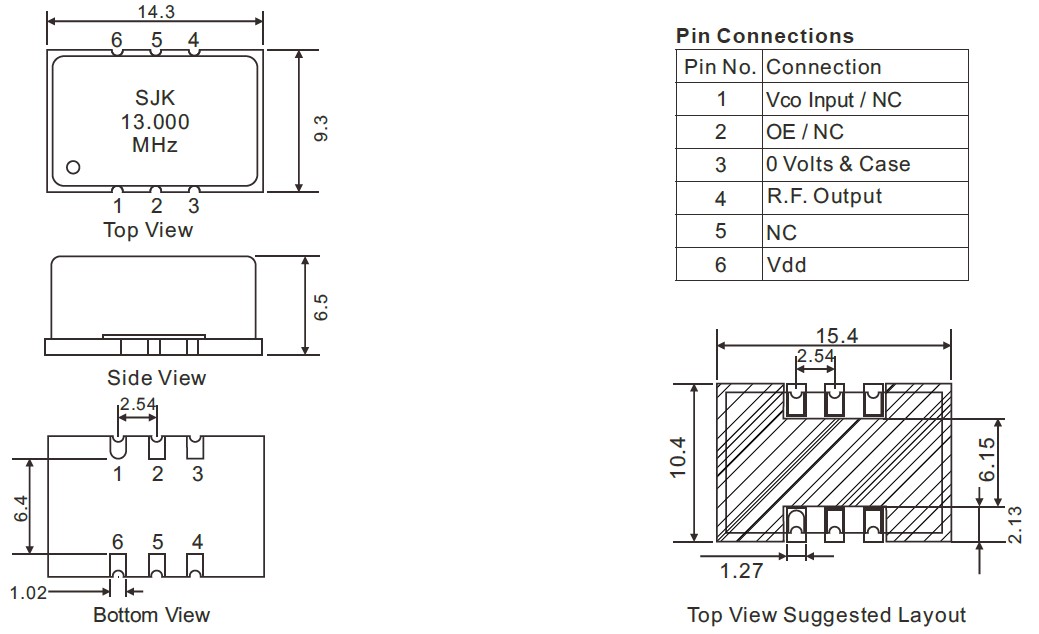

    Dimensions [mm]
