Thru-Hole OCXO With 362712mm Size 5~100MHz 5V ±5ppb LVTTL

Ask Lasest Price
Brand Name :	SJK
Model Number :	SJK-6X
Certification :	SGS, RoHS, REACH
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	30Kpcs per Month
Delivery Time :	4-6 wks

Add to Cart

Product Details
Company Profile

Thru-Hole OCXO With 362712mm Size 5~100MHz 5V ±5ppb LVTTL

Thru-Hole OCXO With 36*27*12mm Size 5~100MHz 5V ±5ppb LVTTL

Features

OCXO (Oven Controlled Crystal Oscillator)

Typical 36.3×27.2×12.7mm DIP Thru-hole OCXO

Frequency range from 5MHz to 100MHz

±3ppb frequency stability over -40~+85℃

Stratum 3 (Overall ±0.3ppm including 10 years aging)

Very fast warm-up and accurate stability

Applications: Base Station, Digital Switch, Test Equipment, Measuring Equipment, SDH, SONET, etc

RoHS Compliant & Pb-Free

Specifications

Type		6X Series DIP OCXO
Output Type		LVTTL/Sine wave
Output Load		15pF, or specify
Output Wave Form		Rectangular
Supply Voltage		3.3V/5.0V	12V
Frequency Range		5~40MHz	10~100MHz
Operating Temperature		-40~+85℃, or spcify
Frequency Stability	Frequency Tolerance	±5ppb Max.
	vs. Operating Temperature	±3ppb~±10ppb
	vs. Supply Voltage	±0.5ppb Max. (±5 Change)
	vs. Load	±0.5ppb Max. (±10 Change)
	vs Aging	±0.5ppb /Daily, ±50ppb/Year, ±0.3ppm/10 years
Voltage Vol (Max.) /Voh (Min.)		0.1Vcc/0.9Vcc
Duty Cycle		45~55%
Spurious		-60dBc
Warm-up		±10ppb (In 10 minutes @+25, referenced to 1 hour)
Power Consumption (Steady state)		1.3W Max.
Frequency Adjustment Range		±0.5ppm (+2.5V±2.5V/+5V±5)
Phase Noise @20MHz	@10Hz	-120dBc/Hz
	@100Hz	-135dBc/Hz
	@1KHz	-145dBc/Hz
	@10KHz	-150dBc/Hz
Packing Unit		100pcs.

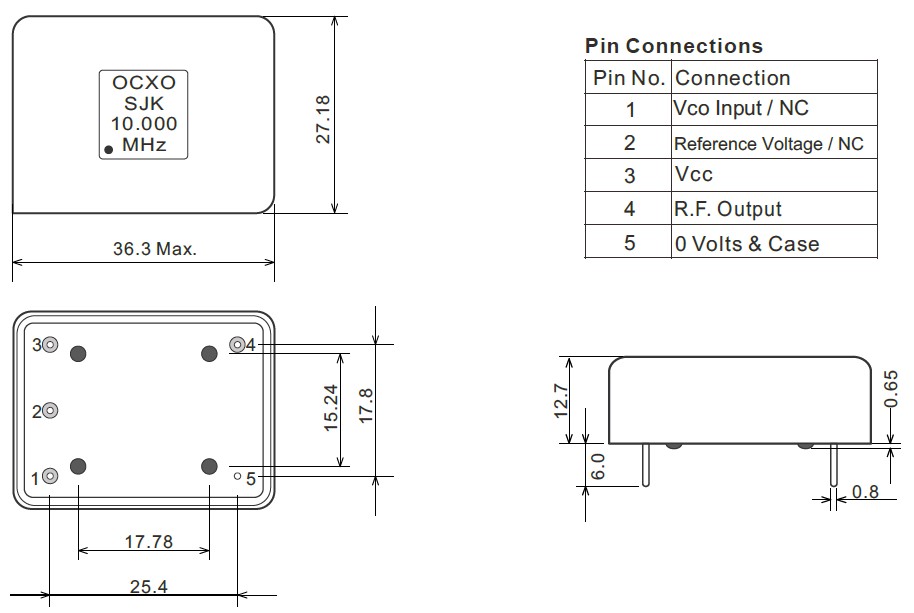

Dimensions [mm]

Captura de pantalla 2022-04-08 135250.jpg
