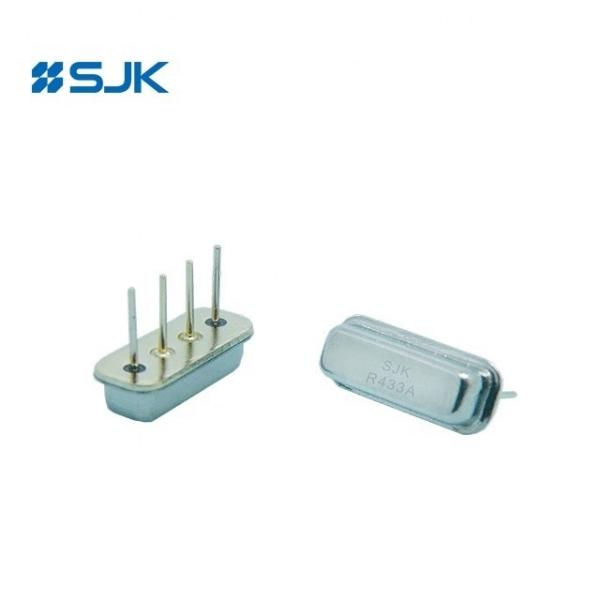

    Dip Type SAW Resonator F-11 4 Pins With 433.92MHz ±75KHz

    Ask Lasest Price
    Brand Name : SJK
    Model Number : SJK-SR433.92-F11-A6
    Certification : SGS, RoHS, REACH
    Price : negotiable
    Payment Terms : T/T
    Supply Ability : 30Kpcs per Month
    Delivery Time : 4-6 wks
    • Product Details
    • Company Profile

    Dip Type SAW Resonator F-11 4 Pins With 433.92MHz ±75KHz


    Dip Type SAW Resonator F-11 4 Pins With 433.92MHz ±75KHz


    Features




    1-Port SAW Resonator

    Metal case for SC04-06 (F-11)

    Electrostatic Sensitive Device (ESD)

    Package size with 10.9*4.45*4.0mm

    Application: Remote control, Security, Alarm etc

    RoHS Compliant & Pb Free


    Specifications




    P/NCenter Frequency (MHz)Frequency Tolerance (kHz)Insertion Loss (dB)Package Code
    R303.825303.825±30 /±751.5F-11
    R303.875303.875±30 /±751.5F-11
    R310310.000±30 /±751.5F-11
    R315315.000±30 /±751.3F-11
    R316.8316.800±30 /±751.2F-11
    R330330.000±30 /±751.6F-11
    R350350.000±30 /±751.5F-11
    R360360.000±30 /±751.3F-11
    R370370.000±30 /±751.7F-11
    R390390.000±30 /±751.5F-11
    R407.3407.300±30 /±751.5F-11
    R418418.000±30 /±751.5F-11
    R433433.920±30 /±751.7F-11
    R868.35868.350±75 /±1502.2F-11

    For other frequencies and specifications, please contact our sales department.


    Dimensions [mm]




    F-11-SAW-Resonator-Dimensions
