SMD 5032 HCSL Output Differential Oscillator Support 25-200MHz 2.5-3.3V For Fibre Channel

Ask Lasest Price
Brand Name :	SJK
Model Number :	SJK-5H
Certification :	SGS, RoHS, REACH
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	70KKpcs/M
Delivery Time :	4-6 wks

Add to Cart

Product Details
Company Profile

SMD 5032 HCSL Output Differential Oscillator Support 25-200MHz 2.5-3.3V For Fibre Channel

SMD 5032 HCSL Output Differential Oscillator Support 25-200MHz 2.5-3.3V For Fibre Channe

Features

Differential Output Crystal Oscillator (HCSL Output)

Output frequency range from 25MHz to 200MHz

Low supply voltage operation: 2.5V/3.3V

Excellent low phase noise and jitter

3-state function available

Automatic mounting and reflow soldering

Applications: PC, Server, Fibre channel, Gigabit ethernet, Base station, Mobile communications, etc

RoHS Compliant / Pb-Free

Specifications

Type	5H Series HCSL Output SMD Oscillator
Output Type	HCSL
Output Load	50Ω
Supply Voltage	2.5V/3.3V
Frequency Range	25~200MHz
Supply Current	30mA Max.
Overall Frequency Stability*	±25ppm, ±50ppm, or specify
Operating Temperature	-40~+85℃, or specify
Storage Temperature	-55~+125℃
Voltage Vol (Max.) /Voh (Min.)	0mV /740mV
Rise (Tr) /Fall (Tf) Time	0.5ns Max.
Duty Cycle	45~55%
Start-up Time	10ms Max.
Phase Noise (156.25MHz) @1KHz	-105dBc/Hz
Phase Jitter (12KHz~20MHz)	1pS Max.
Aging (at 25℃)	±3ppm/Year Max.
Packing Unit	1000pcs./Reel

*Including frequency tolerance at 25℃, variation over temperature, supply voltage variation, aging and vibration

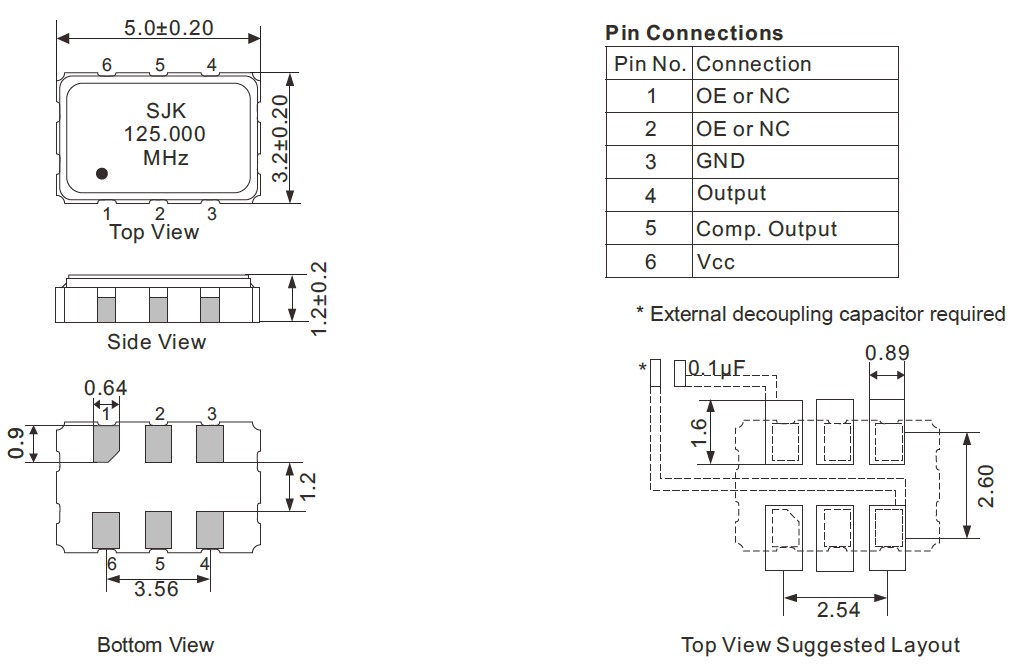

Dimensions [mm]
