LVDS SMD 5032 VCXO 50~200MHz 3.3V ±30ppm -40~+85℃

Ask Lasest Price
Brand Name :	SJK
Model Number :	SJK-5V
Certification :	SGS, RoHS, REACH
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	70KKpcs/M
Delivery Time :	4-6 wks

Add to Cart

Product Details
Company Profile

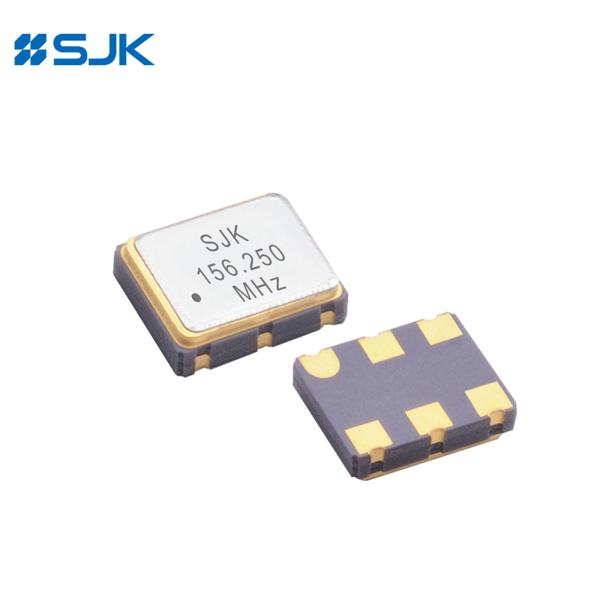

LVDS SMD 5032 VCXO 50~200MHz 3.3V ±30ppm -40~+85℃

LVDS SMD 5032 VCXO 50~200MHz 3.3V ±30ppm -40~+85℃

Features of 5V Series LVDS SMD 5032 VCXO

Voltage Controlled Crystal Oscillator (VCXO)

5032 size, 1.2mm hign, SMD 5032 VCXO

LVDS output, output frequency range from 50MHz to 200MHz

Excellent low phase noise and jitter

3-state function available

Automatic mounting and reflow soldering

Applications: Base station, Server, Commnunications, Ethernet, SONET, Femtocell, etc

RoHS Compliant /Pb-Free

Electrical Specifications Of 5V Series LVDS SMD 5032 VCXO

Item /Type	5V Series (LVDS Output SMD 5032 VCXO)
Output Type	LVDS
Output Load	100Ω
Supply Voltage	3.3V
Frequency Range	50~200MHz
Supply Current	80mA Max.
Frequency Stability	±25ppm, ±50ppm, or specify
Operating Temperature	-40~+85℃, or specify
Storage Temperature	-55~+125℃
Voltage Vol (Max.) /Voh (Min.)	0.9V/1.6V
Rise (Tr) /Fall (Tf) Time	1ns Max.
Start-up Time	10ms Max.
Duty Cycle	45~55%
Absolute Pulling Range (APR)*	±50ppm Min., or specify
Nominal Control Range	0.5 Vcc
Control Voltage Range	0~Vcc
Lineartiy	10% Max.
Phase Jitter (12KHz~20MHz)	1pS Max.
Packing Unit	1000pcs./Reel

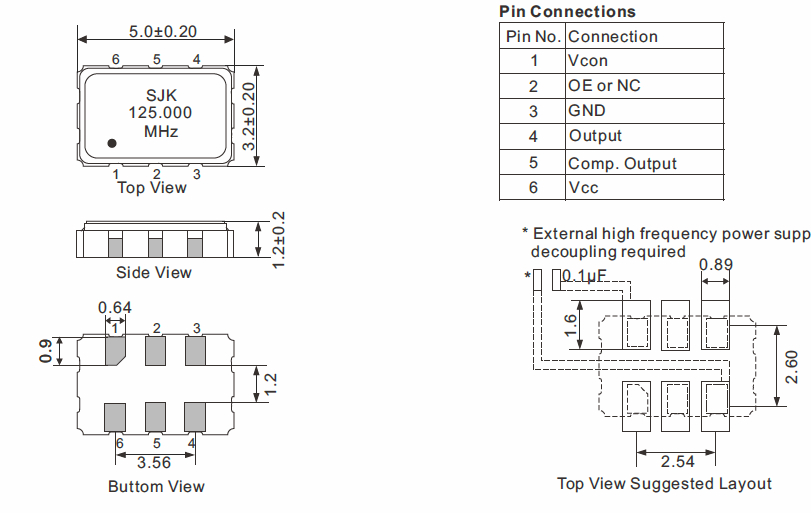

Dimensions[mm]

LVPECL-SMD-5032-VCXO-Dimensions
