SMD 1490 Size Differential LVPECL Oscillator With 25~700MHz For Gigabit Ethernet

SMD 1490 Size Differential LVPECL Oscillator With 25~700MHz for Gigabit Ethernet Application

Features

Differential Output Crystal Oscillator LV-PECL

Typical 14×9.6×5.6mm, LV-PECL output crystal oscillator

Output frequency range from 25MHz to 700MHz

Low supply voltage operation: 2.5V/3.3V

Surface mount package

Excellent low phase noise and jitter

3-state function available

Automatic mounting and reflow soldering

Applications: Server, SAN, Broadband Access, Smart Grid, Gigabit Ethernet, Fibre channel, etc

RoHS Compliant / Pb-Free

Specifications

Type	9J Series LVPECL Output SMD Oscillator
Output Type	LVPECL
Output Load	50Ω to Vcc-2V
Supply Voltage	2.5V/3.3V
Frequency Range	25~700MHz
Supply Current	80mA Max.
Overall Frequency Stability*	±25ppm, ±50ppm, or specify
Operating Temperature	-40~+85℃, or specify
Storage Temperature	-55~+125℃
Voltage Vol (Max.) /Voh (Min.)	Vcc-1.62V/Vcc-1.026V
Rise (Tr) /Fall (Tf) Time	1ns Max.
Duty Cycle	45~55%
Start-up Time	10ms Max.
Phase Noise (156.25MHz) at 1KHz	-120dBc/Hz
Phase Jitter (12KHz~20MHz)	1pS Max.
Aging (at 25℃)	±3ppm/Year Max.
Packing Unit	500pcs./Reel

*: Including frequency tolerance at 25℃, variation over temperature, supply voltage variation, aging and vibration

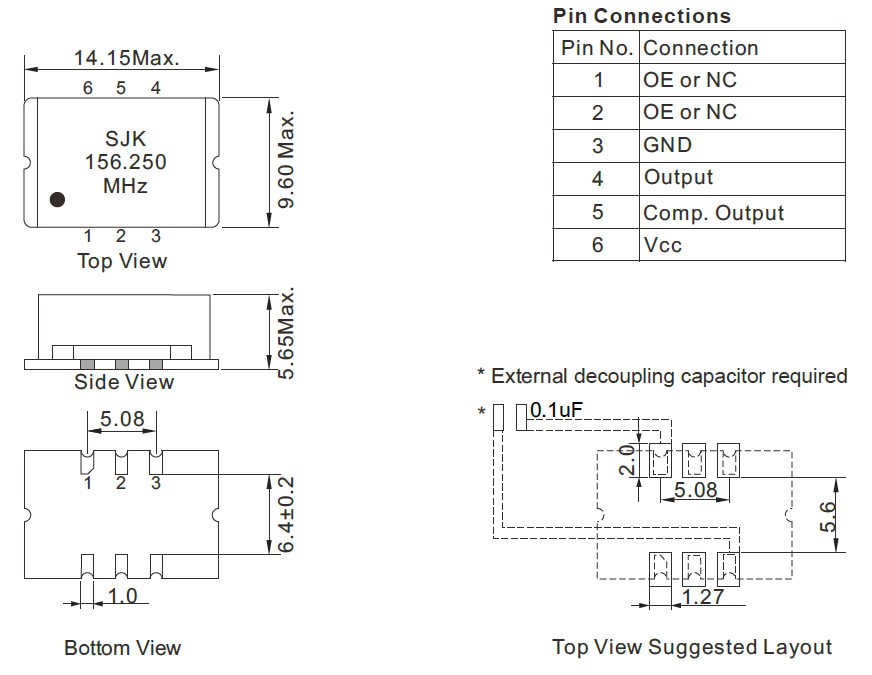

Dimensions [mm]

1460 2jpg.jpg
