SMD VCXO CMOS Output 14.2×9.3×5.4mm With 3.3V ±25ppm -40~+85 For PC

Ask Lasest Price
Brand Name :	SJK
Model Number :	SJK-9S
Certification :	SGS, RoHS, REACH
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	70KKpcs/M
Delivery Time :	4-6 wks

Add to Cart

Product Details
Company Profile

SMD VCXO CMOS Output 14.2×9.3×5.4mm With 3.3V ±25ppm -40~+85 For PC

SMD VCXO CMOS Output 14.2×9.3×5.4mm With 3.3V ±25ppm -40~+85 For PC

Features of 9S Series SMD VCXO

Voltage Controlled Crystal Oscillator (VCXO)

Typical 14.2×9.3×5.4mm size. SMD VCXO

CMOS output, output frequency range from 50MHz to 700MHz

Excellent low phase noise and jitter

3-state function available

Automatic mounting and reflow soldering

Applications: Base station, Server, Commnunications, Ethernet, SONET, Femtocell, etc

RoHS Compliant /Pb-Free

Electrical Specifications Of 9S Series SMD VCXO

Item /Type	9S Series (SMD VCXO)
Output Type	CMOS
Output Load	15pF, or specify
Supply Voltage	3.3V
Frequency Range	50~700MHz
Supply Current	100mA Max.
Frequency Stability	±25ppm, ±50ppm, or specify
Operating Temperature	-40~+85℃, or specify
Storage Temperature	-55~+125℃
Voltage Vol (Max.) /Voh (Min.)	0.1Vcc /0.9Vcc
Rise (Tr) /Fall (Tf) Time	5ns Max.
Start-up Time	10ms Max.
Duty Cycle	45~55%
Absolute Pulling Range (APR)*	±50ppm Min., or specify
Nominal Control Range	0.5 Vcc
Control Voltage Range	0~Vcc
Lineartiy	10% Max.
Phase Jitter (12KHz~20MHz)	10pS Max.
Packing Unit	500pcs./Reel

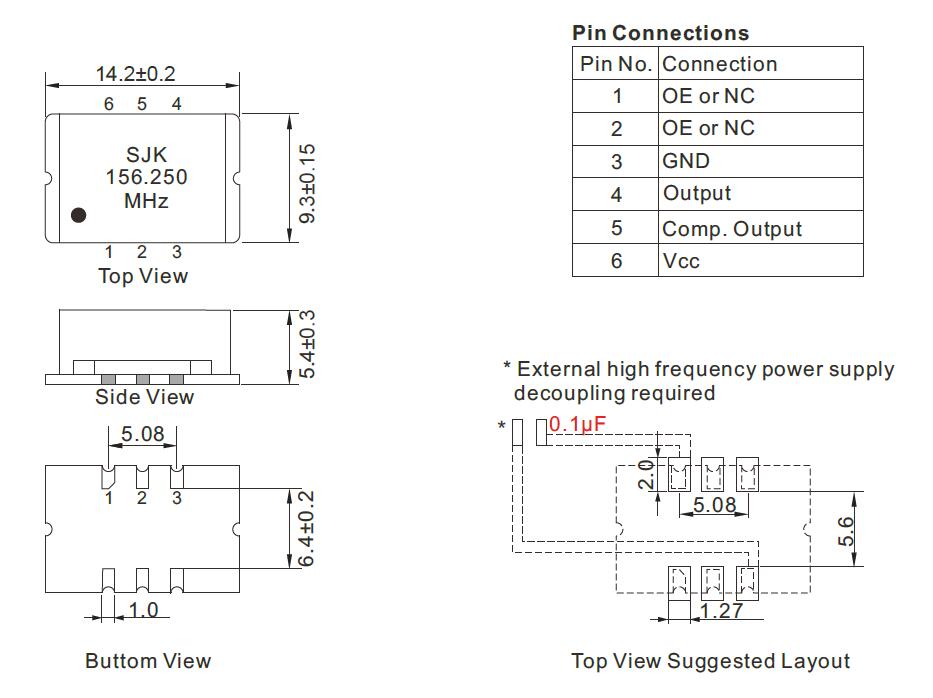

Dimensions[mm]
