SMD 7050 LVDS VCXO 50~700MHz High Frequency ±25ppm -40~+85

Ask Lasest Price
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	70KKpcs/M
Delivery Time :	4-6 wks

Add to Cart

Product Details
Company Profile

SMD 7050 LVDS VCXO 50~700MHz High Frequency ±25ppm -40~+85

SMD 7050 LVDS VCXO 50~700MHz High Frequency ±25ppm -40~+85

Features of 6V Series SMD 7050 LVDS VCXO

Voltage Controlled Crystal Oscillator (VCXO)

7050 size, 1.3mm hign, SMD 7050 LVPECL VCXO

LVDS output, output frequency range from 50MHz to 700MHz

Excellent low phase noise and jitter

3-state function available

Automatic mounting and reflow soldering

Applications: Base station, Server, Commnunications, Ethernet, SONET, Femtocell, etc

RoHS Compliant /Pb-Free

Electrical Specifications Of 6V Series SMD 7050 LVDS VCXO

Item /Type	6V Series (SMD 7050 LVDS VCXO)
Output Type	LVDS
Output Load	100Ω
Supply Voltage	3.3V
Frequency Range	50~700MHz
Supply Current	99mA Max.
Frequency Stability	±25ppm, ±50ppm, or specify
Operating Temperature	-40~+85℃, or specify
Storage Temperature	-55~+125℃
Voltage Vol (Max.) /Voh (Min.)	0.9V /1.6V
Rise (Tr) /Fall (Tf) Time	1ns Max.
Start-up Time	10ms Max.
Duty Cycle	45~55%
Absolute Pulling Range (APR)*	±50ppm Min., or specify
Nominal Control Range	0.5 Vcc
Control Voltage Range	0~Vcc
Lineartiy	10% Max.
Phase Jitter (12KHz~20MHz)	10pS Max.
Packing Unit	1000pcs./Reel

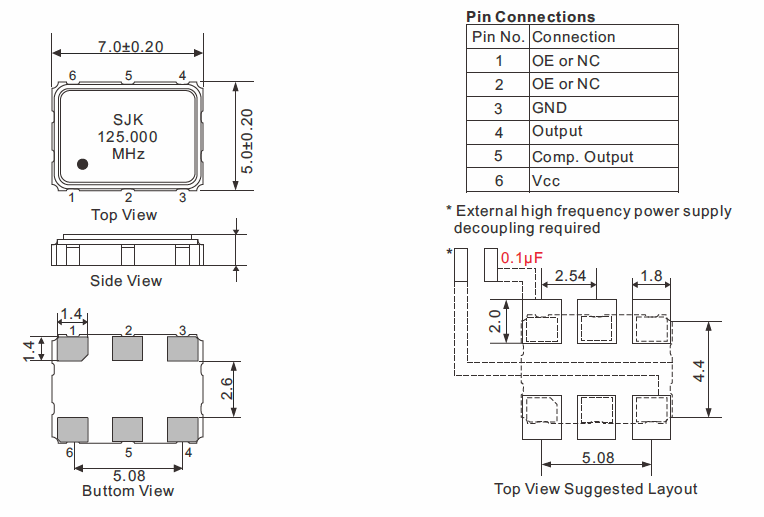

Dimensions[mm]

smd-7050-lvds-vcxo
