SJK8208 5032 1 To 80MHz, ±10 To ±50 Ppm Oscillator Oscillator For Industrial, Telecom, Storage, Networt

Ask Lasest Price
Brand Name :	SJK
Model Number :	SiT8208AC -23-25E -75.000000T
Certification :	SGS, RoHS, REACH
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	8Kpcs per day
Delivery Time :	3 days

Add to Cart

Product Details
Company Profile

SJK8208 5032 1 To 80MHz, ±10 To ±50 Ppm Oscillator Oscillator For Industrial, Telecom, Storage, Networt

SJK8208 5032 1 To 80 MHz, ±10 To ±50 Ppm Oscillator High-Performance Oscillator For Industrial, Telecom, Storage, Networking

Features

Any frequency between 1 and 80 MHz accurate to 6 decimal places

100% pin-to-pin drop-in replacement to quartz-based oscillators

Ultra low phase jitter: 0.5 ps (12 kHz to 20 MHz)

Frequency stability as low as ±10 PPM

Industrial or extended commercial temperature range

LVCMOS/LVTTL compatible output

Standard 4-pin packages: 2.5 x 2.0, 3.2 x 2.5, 5.0 x 3.2, 7.0 x 5.0 mm x mm

Instant samples with Time Machine II and field programmable oscillators

Outstanding silicon reliability of 2 FIT or 500 million hour MTBF

Pb-free, RoHS and REACH compliant

Ultra short lead time

Applications

SATA, SAS, Ethernet, PCI Express, video, WiFi

Computing, storage, networking, telecom, industrial control

Specifications

Type	SJK8208 Ultra Performance Oscillator
Output Type	LVCMOS/LVTTL compatible
Frequency Range	1-80MHz
Supply Voltage	1.8V,2.5V,2.8V,3.3V
Frequency Stability	±10ppm, ±50ppm
Current Consumption	33mA Max.
Standby Current	70mA Max.
OE Disable Current	31mA Max.
Operating Temperature	-40~+85℃
Duty Cycle	45~55%
Rise/Fall Time	2.0ns Max.
Voltage Vol (Max.) / Voh (Min.)	10%Vcc / 90%Vcc
Voltage Vil (Max.) / Vih (Min.)	30%Vcc / 70%Vcc
Input Pull-up Impedance	150KΩ Max. (Pin1 Logic High)
Input Pull-up Impedance	2MΩ Min. (Pin1 Logic Low)
Start-up Time	5ms Max.
Enable/Disable Time	122ns Max.
Resume Time	5ms Max.
RMS Period Jitter	4ps Max.
Peak to Peak Period Jitter	30ps Max.
RMS Phase Jitter (12KHz~20MHz)	2ps Max.
Storage Temperature	-60~+150℃
Packing Units	2520 / 3225: 3000pcs/reel 5032 / 7050: 1000pcs/reel

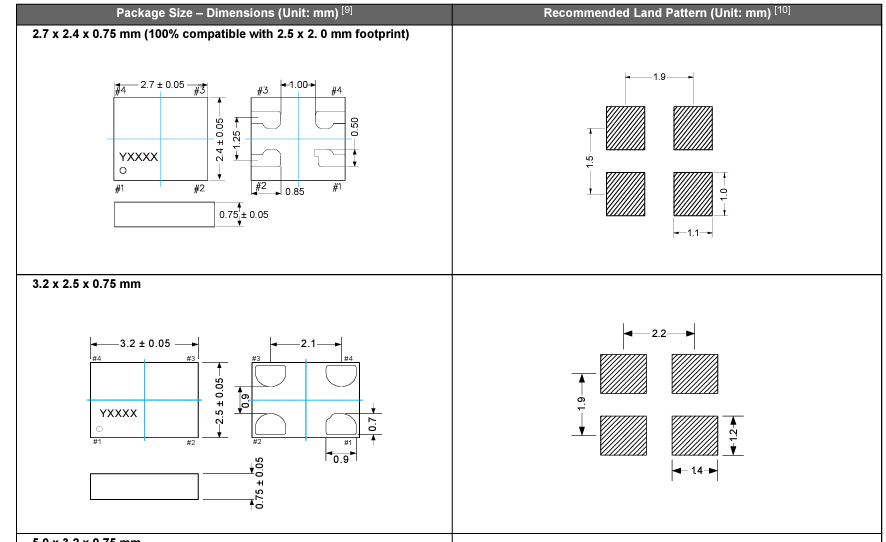

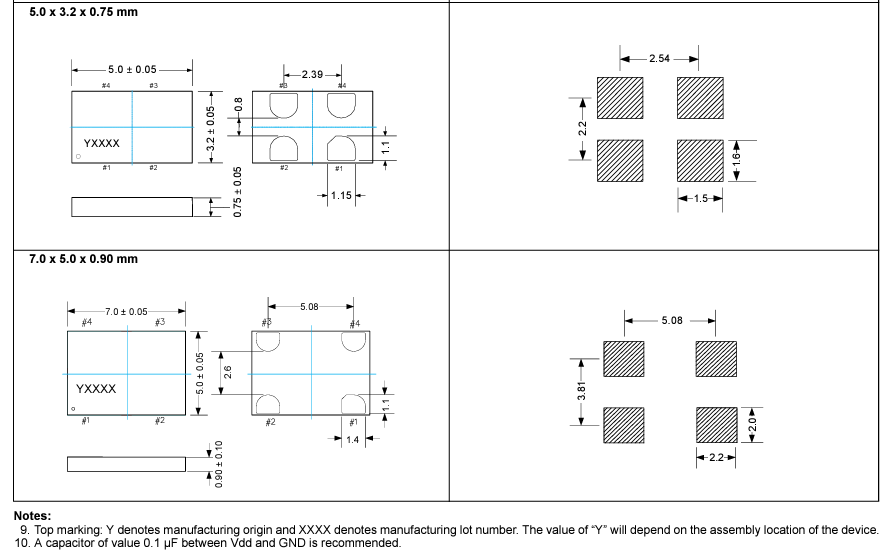

Dimensions [mm]
