SJK8209 2520 MEMS Oscillator With High Frequency 80 To 220 MHz ±10 To ±50 Ppm For Telecom, Networking

Ask Lasest Price
Brand Name :	SJK
Model Number :	SiT8209AC-23-25E-156.000000T
Certification :	SGS, RoHS, REACH
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	8Kpcs per day
Delivery Time :	3 days

Add to Cart

Product Details
Company Profile

SJK8209 2520 MEMS Oscillator With High Frequency 80 To 220 MHz ±10 To ±50 Ppm For Telecom, Networking

SJK8209 2520 MEMS Oscillator with High Frequency 80 to 220 MHz High Performance ±10 to ±50 ppm for telecom, networking

Features

Any frequency between 80.000001 and 220 MHz accurate to 6 decimal places

100% pin-to-pin drop-in replacement to quartz-based oscillators

Ultra-low phase jitter: 0.5 ps (12 kHz to 20 MHz)

Frequency stability as low as ±10 PPM

Industrial or extended commercial temperature range

LVCMOS/LVTTL compatible output

Standard 4-pin packages: 2.5 x 2.0, 3.2 x 2.5, 5.0 x 3.2, 7.0 x 5.0 mm x mm

Outstanding silicon reliability of 2 FIT or 500 million hour MTBF

Pb-free, RoHS and REACH compliant

Ultra-short lead time

Applications

SATA, SAS, Ethernet, 10-Gigabit Ethernet, SONET, PCI Express, video, Wireless

Computing, storage, networking, telecom, industrial control

Specifications

Type	SJK8209 High Frequency High Performance MEMS Oscillator
Output Type	LVCMOS/LVTTL
Frequency Range	80-220MHz
Supply Voltage	1.8V,2.5V,2.8V,3.3V
Frequency Stability	±10ppm
Current Consumption	36mA Max.
Standby Current	70mA Max.
OE Disable Current	31mA Max.
Operating Temperature	-40~+85℃
Duty Cycle	45~55%
Rise/Fall Time	2.0ns Max.
Voltage Vol (Max.) / Voh (Min.)	10%Vcc / 90%Vcc
Voltage Vil (Max.) / Vih (Min.)	30%Vcc / 70%Vcc
Input Pull-up Impedance	250KΩ Max. (Pin1 Logic High)
Input Pull-up Impedance	2MΩ Min. (Pin1 Logic Low)
Start-up Time	5ms Max.
Enable/Disable Time	122ns Max.
Resume Time	5ms Max.
RMS Period Jitter	4ps Max.
Peak to Peak Period Jitter	30ps Max.
RMS Phase Jitter (12KHz~20MHz)	2ps Max.
Storage Temperature	-60~+150℃
Packing Units	2016 / 2520 / 3225: 3000pcs/reel 5032 / 7050: 1000pcs/reel

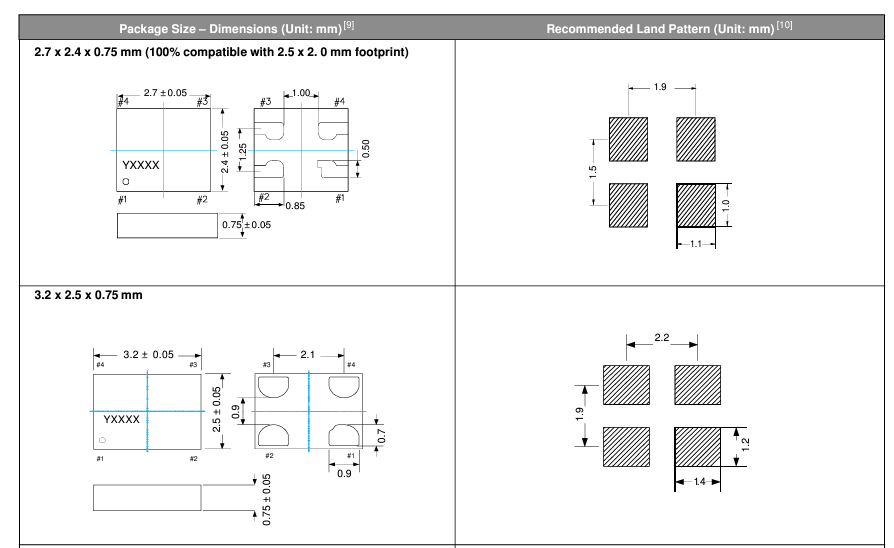

Dimensions [mm]
